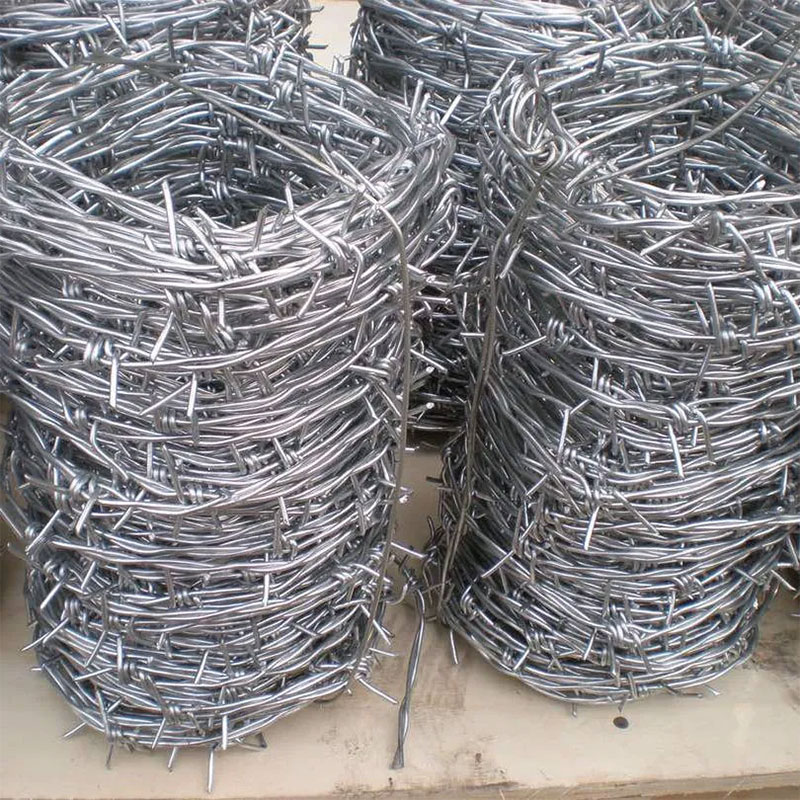

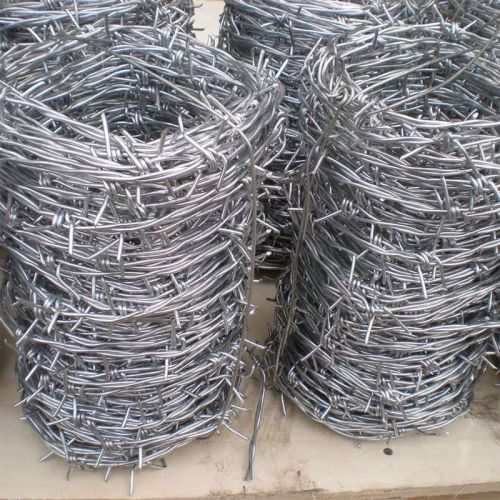

Galvanized barbed wire is a type of carbon steel wire that has been designed with sharp edges or points arranged at intervals along its strands. Galvanized barbed wire is primarily utilized in fencing to prevent trespassing or to protect an enclosed area. The galvanized process shields the galvanized barbed wire from harsh weather conditions and prevents rusting, greatly prolonging its lifespan, especially in outdoor projects.
Specification
Material: High tensile low carbon steel for maximum strength and durability.
Length: Available in rolls of 30m, 50m, and 100m to suit different project sizes.
Gauge of Barbs: 12-14 gauge to ensure the barbs are strong enough to deter but not so heavy as to compromise the wire's integrity.
Coating: Galvanized coating provides rust resistance, enhancing the longevity of the barbed wire.
High Tensile Strength: Crafted from q195/q235 steel wire, the barbed wire is designed to withstand the rigors of outdoor use, ensuring long-lasting security for your property.
Large Barbs for Effective Deterrence: The prominent barbs serve as a visual barrier, effectively deterring both animals and unauthorized access to your land.
Cost-Effective Solution: We offer our barbed wire at wholesale prices, making it an economical choice for large-scale fencing projects without compromising on quality.
Easy Installation: With user-friendly design, the barbed wire can be quickly and easily integrated into existing fencing systems or installed as a standalone barrier.

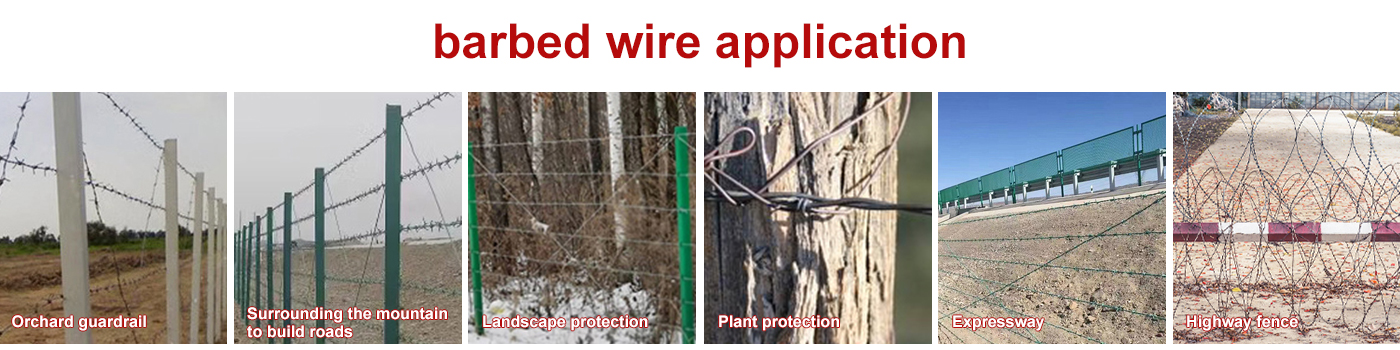

Versatile Usage: Suitable for a variety of applications, from containing livestock to marking property lines, the barbed wire is a versatile solution for any agricultural setting
Enhanced Security: Protect your property and livestock with the physical barrier.
Durability: The high tensile strength and galvanized coating ensure the barbed wire will resist rust and wear for years to come.
Low Maintenance: The rust-resistant coating means less upkeep and longer intervals between replacements.

<table all magic-47">
Gauge | Wire Diameter | Points | Barb Spacing | Lenght | Roll Weight |
12 × 12 | 2.7mm × 2.7mm | 4 | 127mm | 100m | 14.0kg |
12 × 12 | 2.7mm × 2.7mm | 4 | 127mm | 150m | 21.5kg |
12 × 12 | 2.7mm × 2.7mm | 4 | 127mm | 200m | 28.5kg |
12 × 12 | 2.7mm × 2.7mm | 4 | 127mm | 250m | 35.5kg |
12 × 12 | 2.7mm × 2.7mm | 4 | 127mm | 300m | 43.0kg |
12.5 × 12.5 | 2.5mm × 2.5mm | 4 | 127mm | 100m | 13.5kg |
12.5 × 12.5 | 2.5mm × 2.5mm | 4 | 127mm | 150m | 20.0kg |
12.5 × 12.5 | 2.5mm × 2.5mm | 4 | 127mm | 200m | 27.0kg |
12.5 × 12.5 | 2.5mm × 2.5mm | 4 | 127mm | 250m | 33.5kg |
12.5 × 12.5 | 2.5mm × 2.5mm | 4 | 127mm | 300m | 40.5kg |
12.5 × 14 | 2.5mm × 2.0mm | 4 | 127mm | 150m | 17.0kg |
12.5 × 14 | 2.5mm × 2.0mm | 4 | 127mm | 200m | 22.5kg |
12.5 × 14 | 2.5mm × 2.0mm | 4 | 127mm | 250m | 28.0kg |
12.5 × 14 | 2.5mm × 2.0mm | 4 | 127mm | 300m | 33.5kg |
12.5 × 14 | 2.5mm × 2.0mm | 4 | 127mm | 400m | 45.0kg |
13 × 13 | 2.3mm × 2.3mm | 4 | 127mm | 150m | 15.0kg |
13 × 13 | 2.3mm × 2.3mm | 4 | 127mm | 200m | 20.0kg |
13 × 13 | 2.3mm × 2.3mm | 4 | 127mm | 250m | 25.0kg |
13 × 13 | 2.3mm × 2.3mm | 4 | 127mm | 300m | 30.0kg |
13 × 13 | 2.3mm × 2.3mm | 4 | 127mm | 400m | 40.0kg |
14 × 14 | 2.0mm × 2.0mm | 4 | 127mm | 200m | 16.8kg |
14 × 14 | 2.0mm × 2.0mm | 4 | 127mm | 250m | 21.0kg |
14 × 14 | 2.0mm × 2.0mm | 4 | 127mm | 300m | 25.0kg |
14 × 14 | 2.0mm × 2.0mm | 4 | 127mm | 400m | 33.5kg |
14 × 14 | 2.0mm × 2.0mm | 4 | 127mm | 500m | 38.5kg |
15 × 15 | 1.8mm × 1.8mm | 4 | 127mm | 200m | 12.5kg |
15 × 15 | 1.8mm × 1.8mm | 4 | 127mm | 250m | 15.5kg |
15 × 15 | 1.8mm × 1.8mm | 4 | 127mm | 300m | 19.0kg |
15 × 15 | 1.8mm × 1.8mm | 4 | 127mm | 400m | 25.0kg |
15 × 15 | 1.8mm × 1.8mm | 4 | 127mm | 500m | 31.0kg |
15.5 × 15.5 | 1.7mm × 1.7mm | 4 | 127mm | 200m | 11.5kg |
15.5 × 15.5 | 1.7mm × 1.7mm | 4 | 127mm | 250m | 14.0kg |
15.5 × 15.5 | 1.7mm × 1.7mm | 4 | 127mm | 300m | 17.0kg |
15.5 × 15.5 | 1.7mm × 1.7mm | 4 | 127mm | 400m | 23.0kg |
15.5 × 15.5 | 1.7mm × 1.7mm | 4 | 127mm | 500m | 28.5kg |
16 × 16 | 1.65mm × 1.65mm | 4 | 127mm | 200m | 10.0kg |
16 × 16 | 1.65mm × 1.65mm | 4 | 127mm | 250m | 12.5kg |
16 × 16 | 1.65mm × 1.65mm | 4 | 127mm | 300m | 15.0kg |
16 × 16 | 1.65mm × 1.65mm | 4 | 127mm | 400m | 23.0kg |
16 × 16 | 1.65mm × 1.65mm | 4 | 127mm | 500m | 25.0kg |
16.5 × 16.5 | 1.5mm × 1.5mm | 4 | 127mm | 200m | 8.5kg |
16.5 × 16.5 | 1.5mm × 1.5mm | 4 | 127mm | 250m | 10.5kg |
16.5 × 16.5 | 1.5mm × 1.5mm | 4 | 127mm | 300m | 13.0kg |
16.5 × 16.5 | 1.5mm × 1.5mm | 4 | 127mm | 400m | 17.0kg |
16.5 × 16.5 | 1.5mm × 1.5mm | 4 | 127mm | 500m | 21.5kg |
Sunshine Fencing is a leading wire mesh manufacturer based in Shijiazhuang City, China, specializing in a broad range of wire mesh solutions. With over 20 years of experience, we are renowned for our innovative approach and high-quality fence products that cater to industries such as agriculture, construction, mining, and packaging. Our state-of-the-art factory, spanning 50,000 square meters, is equipped with modern technology and advanced equipment. We proudly export to over 100 countries, with annual sales exceeding $60 million. Sunshine Fencing provides over 200 wire mesh solutions and is dedicated to delivering dependable and competitive products in the metal fence and steel wire manufacturing sector. Sunshine Fencing has supplied many clients over the world. You can consult our wire experts for more detailed solutions.
